Today, we visit the factory and learn about the product machine

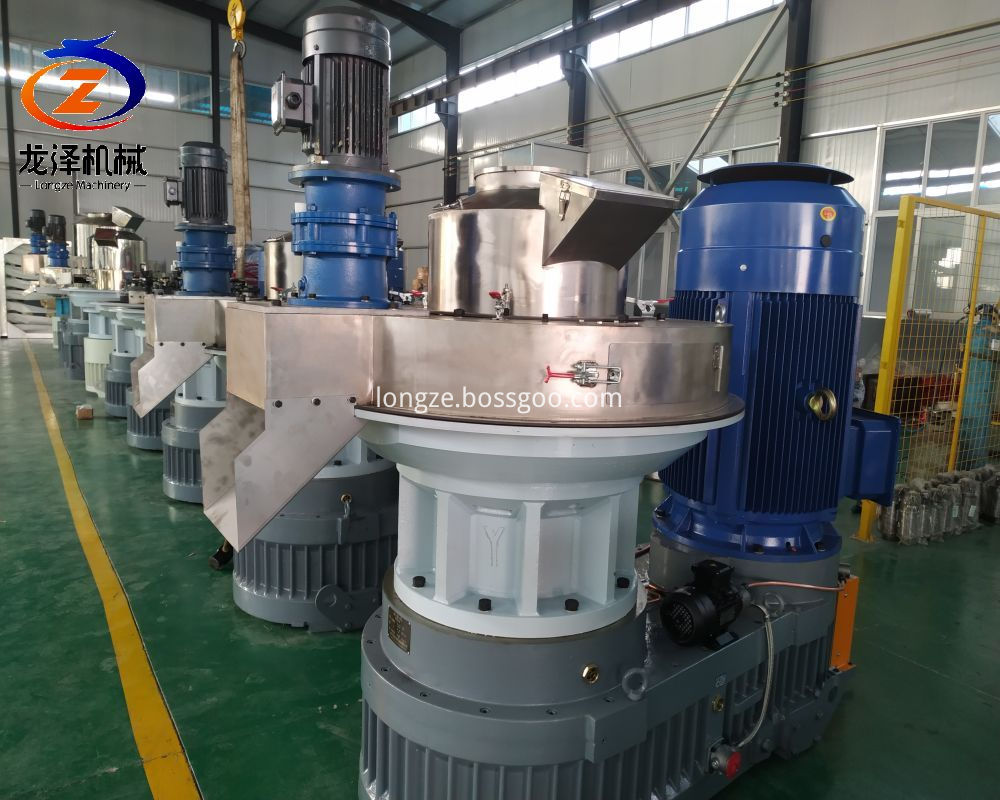

The 850 new eight-generation granulator

optimizes the 850 of the old version and can be equipped with 220KW and 250KW motors. Compared with the old version 850, it has the following advantages:

1. When the output of the old version is 2-3T/h, the size is large, the floor area is large, and it is bulky. The reducer is also small. It uses ordinary steel;
2. When the output of the new 850 is 2.5-3.5T/h or 3-4T/h, the stainless steel material (201 industrial stainless steel) feed cover, discharge cover, granulation chamber and dust removal cover;

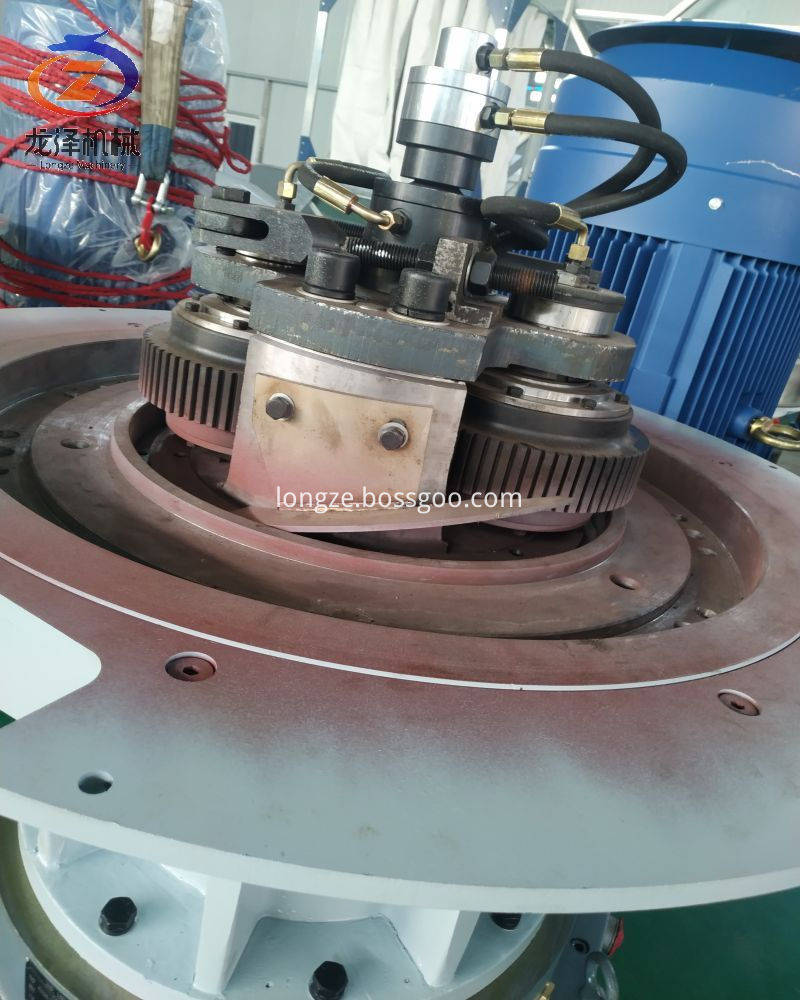

3. Thickened large shaft, 650 manganese steel pressure wheel skin, two or three pressure wheels;
4. The mold is made of stainless steel;
5. Bearing room HRB brand;
6. The heavy-duty industrial integrated reducer has a three-year warranty;
7. The motor is of national standard pure copper and Qingdao brand;
8. Electrical components are Delixi and Chint (CHNT) brands;
9. PLC electric cabinet, 15-inch touch screen, full-automatic control system, one-button start screen;
10. The touch screen has WIFI signal, and the mobile phone can be controlled in real time;
11. National standard of all accessories.

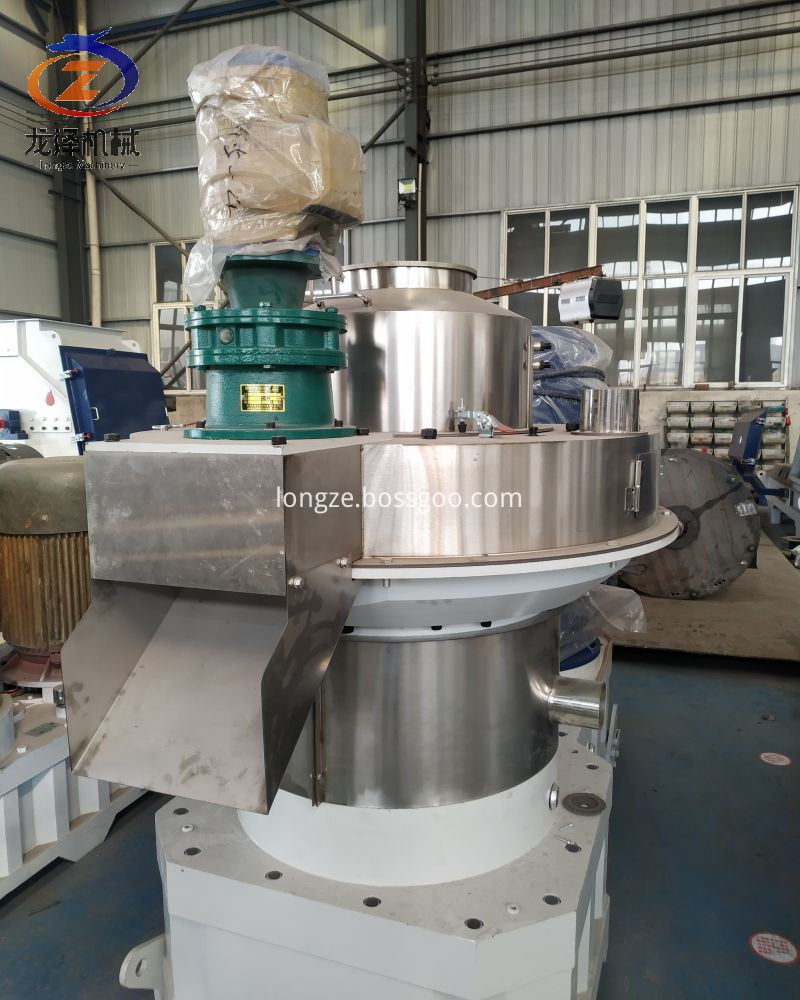

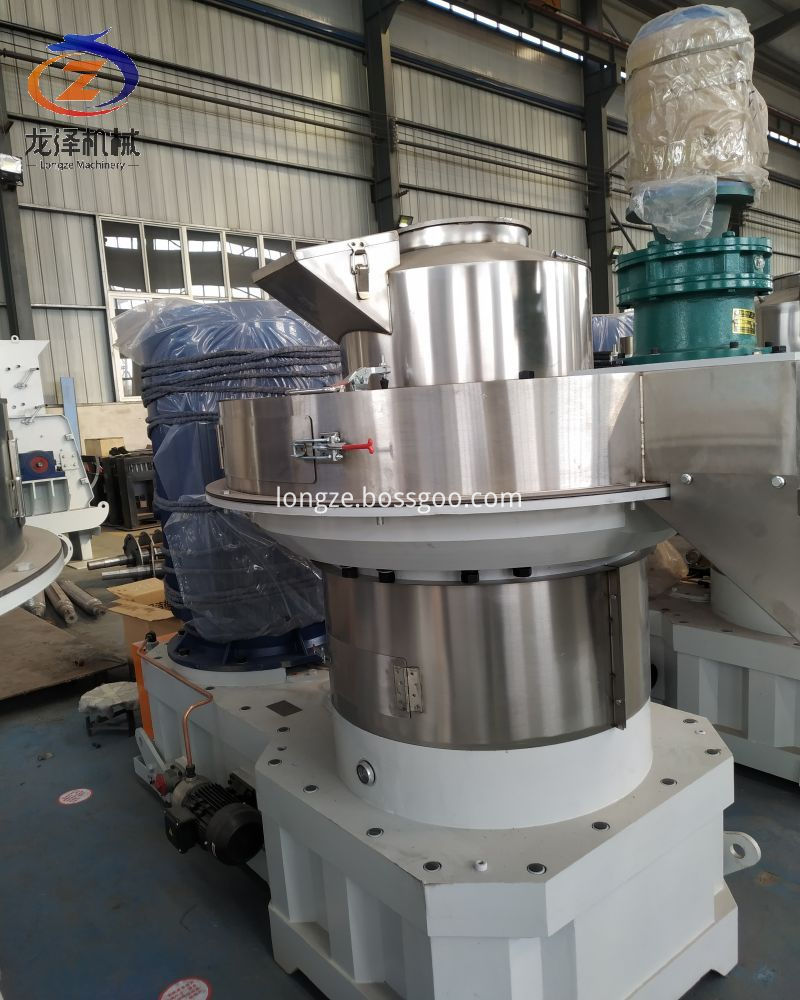

560 centrifugal high-efficiency granulator

the output of 90KW is 1.2-1.5T/h; The output of 110KW is 1.4-1.7T/h and that of 132KW is 1.7-2.5T/h. Its advantages are:
1. It has a three-year warranty (excluding vulnerable parts), and the quality is stable and high;
2. The industrial reducer is equipped with stainless steel cover; The mould is double-layer, and there are two kinds of moulds: alloy (service life 800-1000h) and stainless steel (service life 500-600h);
3. Automatic oil pump is used to pump oil every 20 minutes. The oil cylinder fan cools the reducer and can operate for 24 hours.
The rear of the granulator is connected with a large angle belt conveyor to avoid particle leakage.

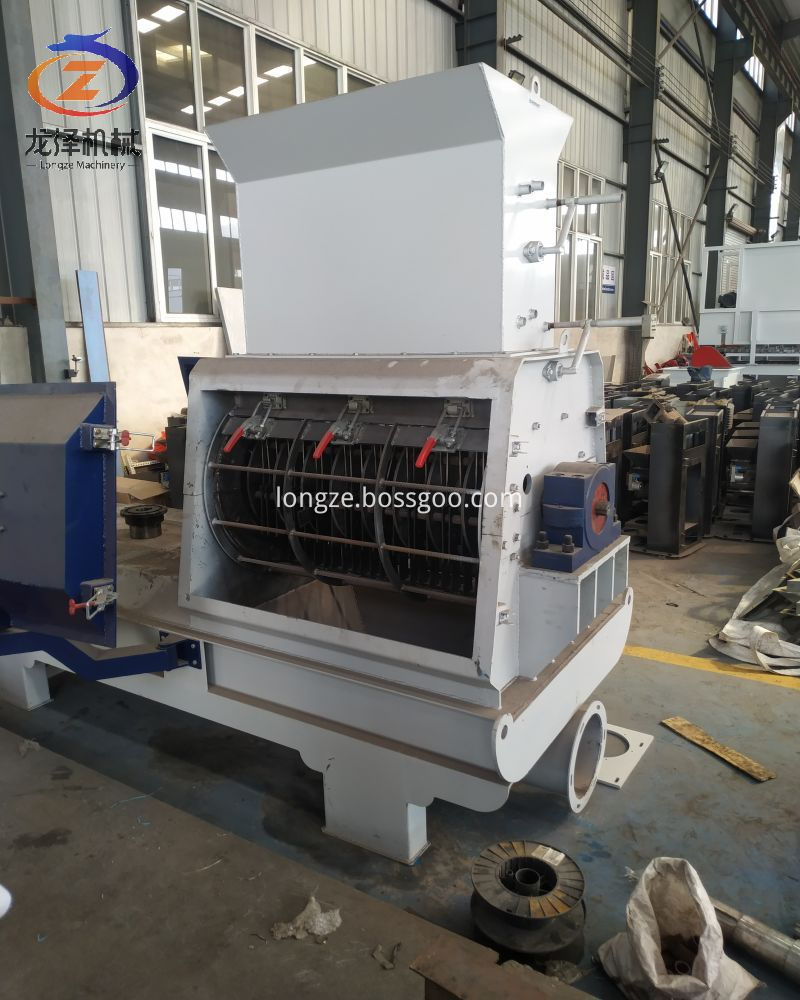

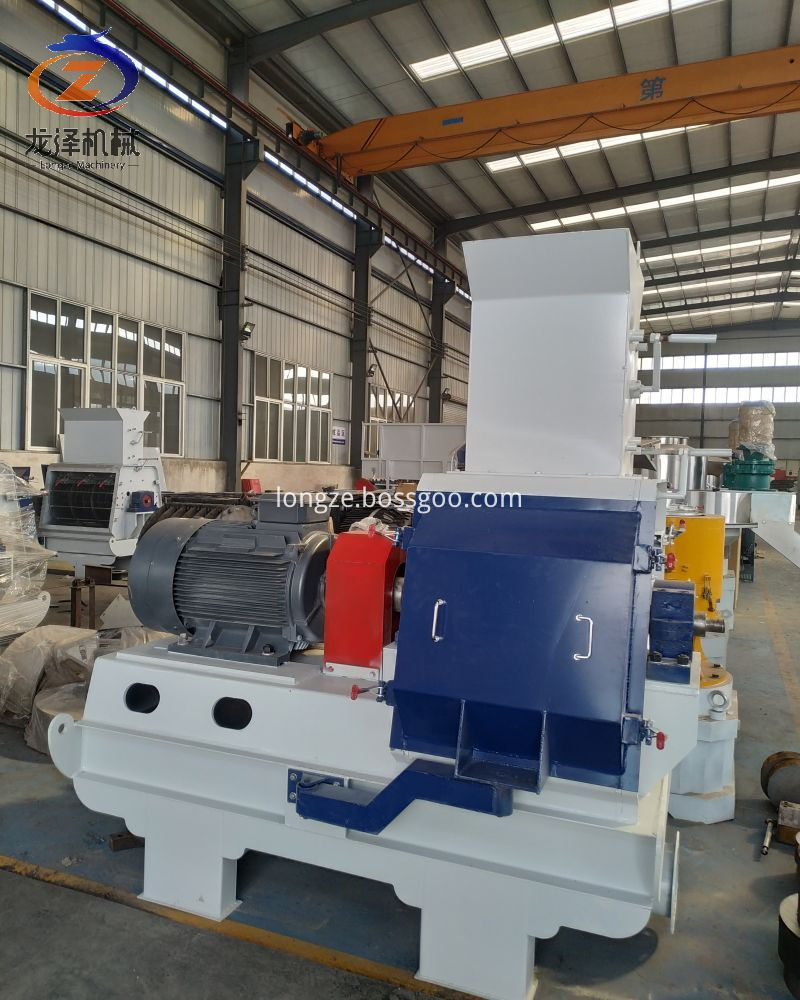

High-efficiency pulverizer

The complete set of pulverizer equipment includes: pulverizer host, fan, sand dragon, bag dust collector, air shutter and connecting air duct;
The accessories include screen and hammer, which are made of alloy, and the hammer is welded with gold wear-resistant material;
Hammer life: 500-800H; The screen is not easy to be damaged, but the crusher is required not to enter nails, stones, etc. The hammer piece can be reused at both ends, and is welded with a layer of wear-resistant material.
Due to different materials, the hammer of the high-efficiency crusher has different service life, generally 500-800h. The service life of the screen is long, and it does not need to be replaced frequently.

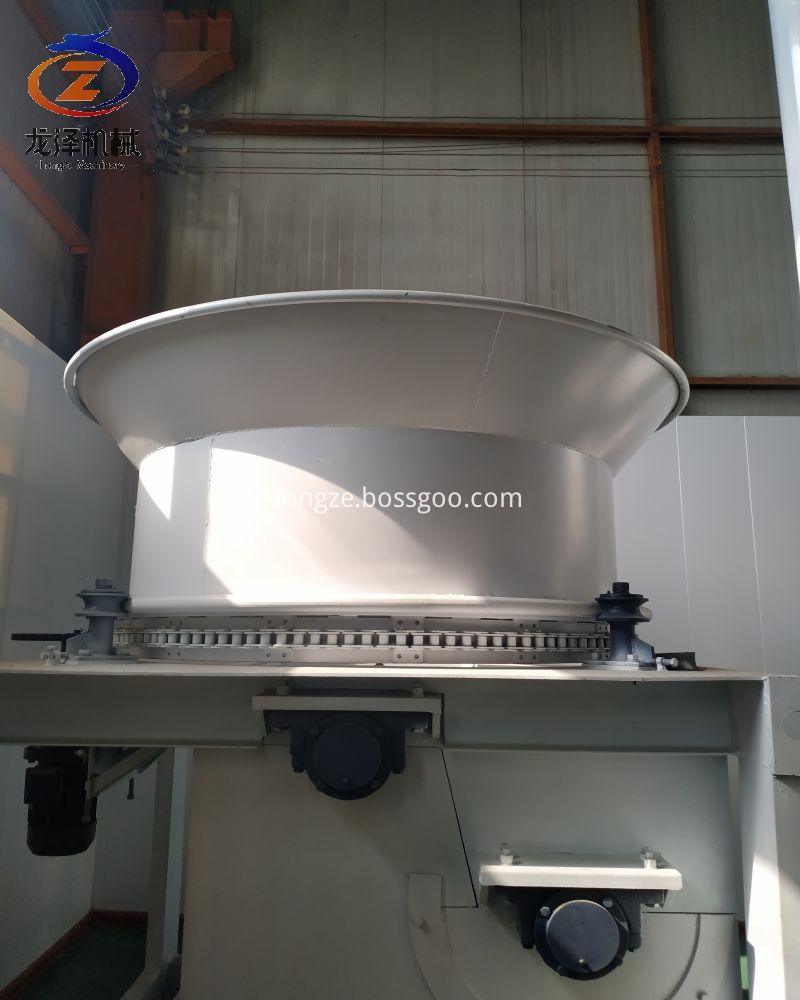

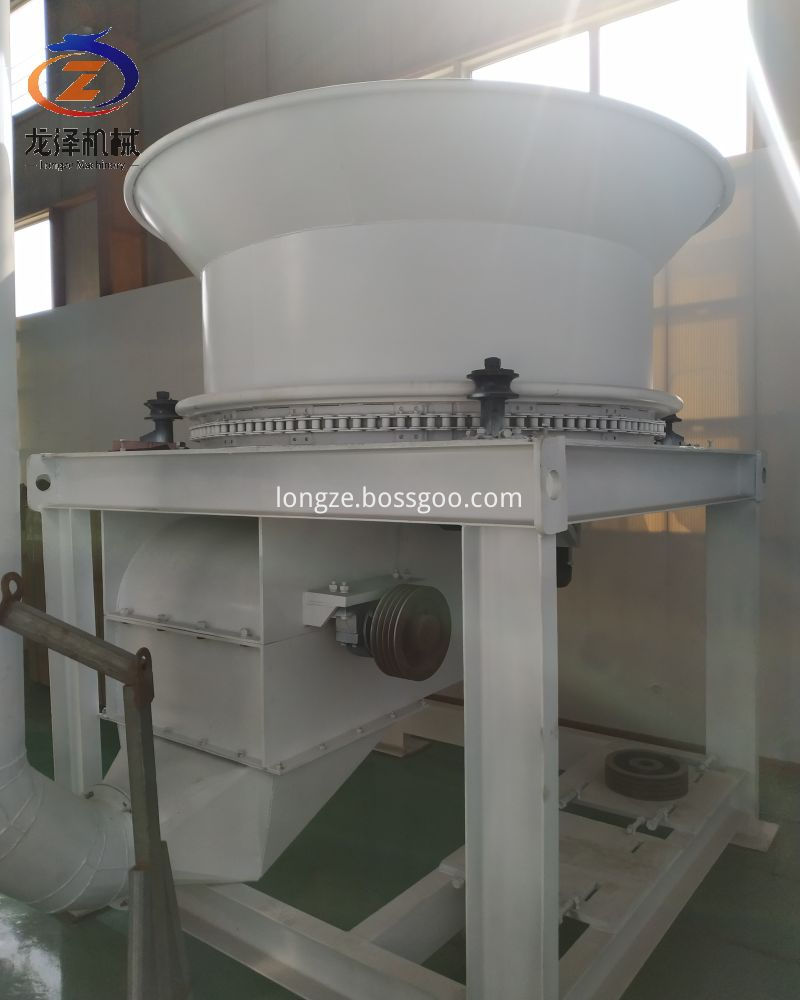

Straw rotary cutter

Spin cut bale, disc hammer, for dry material.
Select different sizes of rotary cutters according to the material, and also select according to the bale humidity and output.
