PRODUCT DESCRIPTION

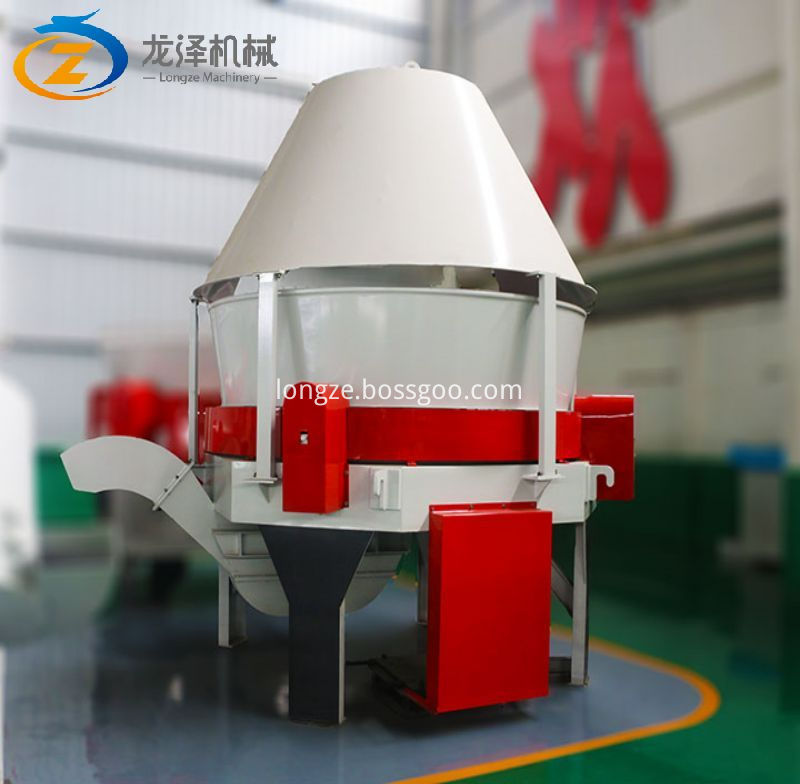

This series of rotary cutter can crush various crop straws, such as corn straw, wheat straw, rice straw, alfalfa grass, Pennisetum, etc. It can also crush boards, strips and skins with the size less than 800x100x10mm (thickness), and the bundled materials can be crushed without breaking bundles.
This series of rotary cutting pulverizer adopts steel plate welding structure, the motor and the pulverizer rotor are installed on the same base, and the drum-type gear coupling is used for direct transmission. The rotor has been verified by dynamic balance, and the structure is reasonable, durable, safe and reliable, easy to install, convenient to operate, with little vibration and high productivity.
SPECIFICATINS
XQFS75×100
XQFS75×150
XQFS75×150(S)
PERFORMANCE INDICATORS
Capacity(T/H)
Model
Power KW
Fan blower
Cyclone
Airlock
airpipe
Dust collector
Tube diameter
2-3
XQFS75*100
90+5.5+1.5
CM-7C-18.5KW
Φ1600
400-4kw
Φ377
120 holes
Φ2000
110+5.5+1.5
CM-7C-22KW
4-6
XQFS75*150
132+7.5+1.5
CM-8C-30KW
Φ2000
600-5.5kw
Φ426
150holes
Φ2500
160+7.5+1.5
CM-8C-37KW
7-10
XQFS75*150(S)
132+132+11+1.5
CM-8C-30KW*2
Φ2000*2
600-5.5kw*2
Φ426*2
150holes*2
Φ3000
160+160+11+1.5
CM-8C-37KW*2
For materials: straw; reference standard: wheat straw; φ 15mm screen; moisture ≤ 15%
When the output is deviated to the high value, the main motor power and the fan power are selected.
WORKING PROCESS

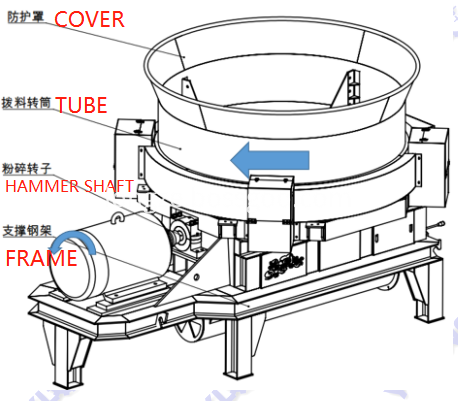

Feeding the materials into the rotary drum tube, then will be feeding into the grinder chamber, at the high speed rotating hammers and the fraction of the sieve, the materials will be grinded, then at the function of sucking force of the fan blower, the grinded materials will be sucking out from the bottom of the machine.
Model
Spindle speed (r/min)
2950
2970
2970
Number of hammer pieces (pieces)
96
156
132
Drum diameter (m)
2
2.5
3
