Introduction
Horizontal wood splitter can split large wood log into two or four parts. The knife frame can be replaced according to customer demand. The splitter is mainly applied to large logs segments, roots, tree branches and more rigid timber. Operation flexible, stable, small footprint, easy maintenance and high efficiency.
Parameter Configuration
|
Model |
PMY50 |
PMY80 |
|
Max Pressure(Mpa) |
25 |
25 |
|
Nominal Force(KN) |
300 |
400 |
|
Pulley Stroke(MM) |
1500 |
2200 |
|
Working Speed(MM/S) |
76 |
96 |
|
Return Speed(MM/S) |
112 |
196 |
|
Round Trips(Qty/Min) |
2 |
2 |
|
Power(KW) |
11 |
18.5 |
|
Dimension(MM) |
4500X630X1400 |
6000X950X1700 |
|
Splitting Cross-sectional Area |
Φ500mm |
Φ800mm |
operating principle
In-feeding wood logs and other raw materials into orbit, controlled the movement of travelling wheels by control panel, push the log head to move forward, the fixed knife can cut logs into four equal segments or two equal segments.
Applied Range
Specializing in large wood and a variety of stump decomposition and cutting.

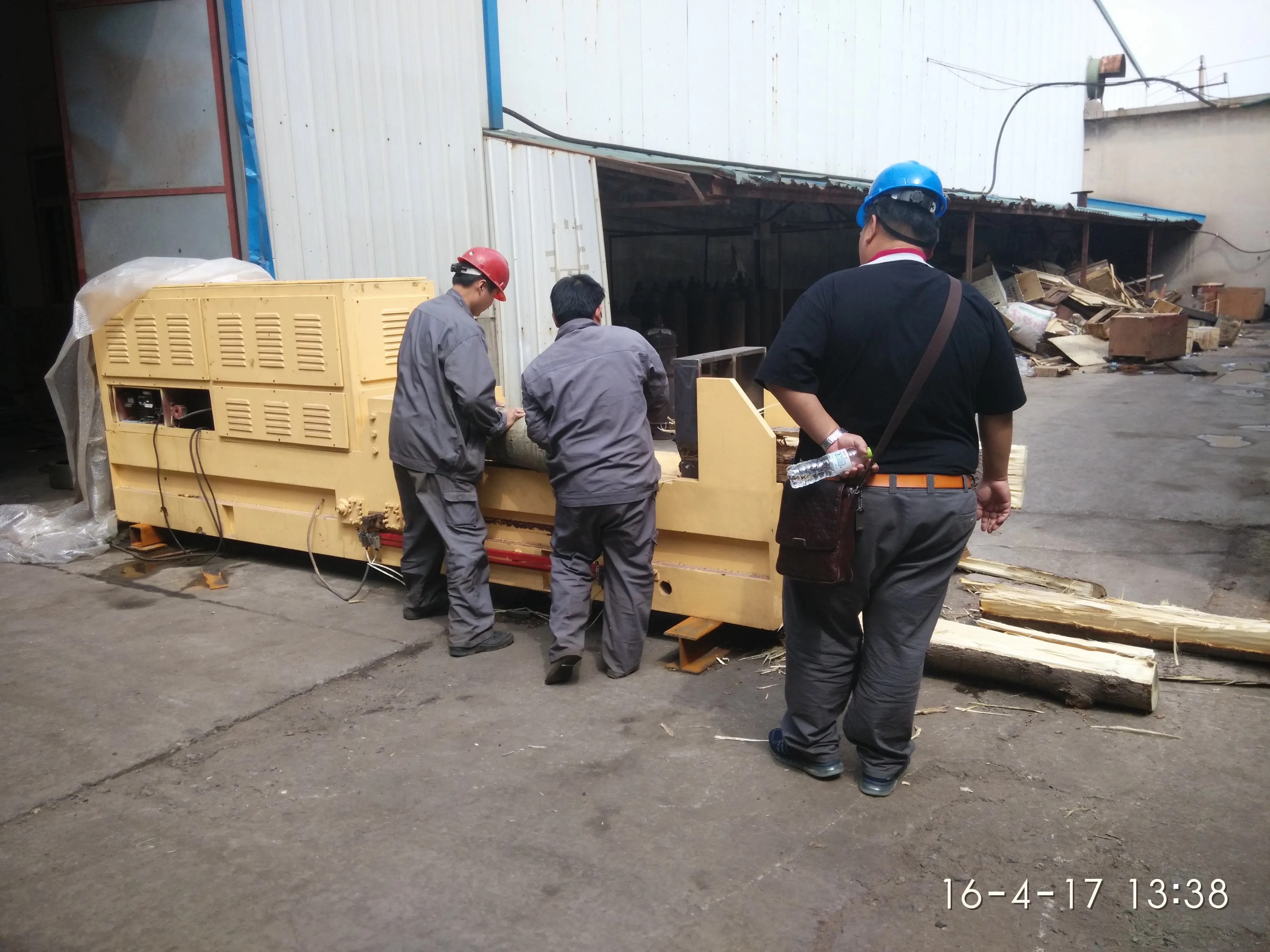

On-site product installation

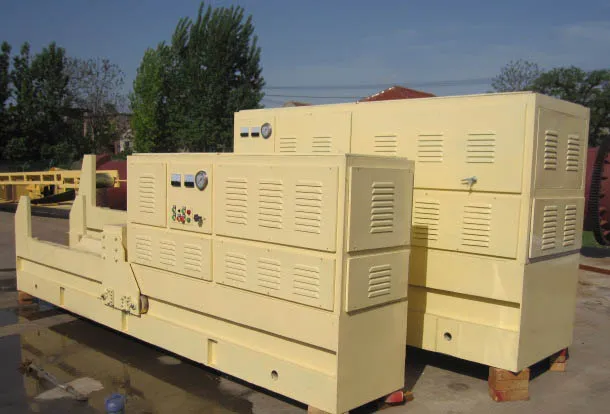

Shipments
Company Introduction
