INTRODUTION

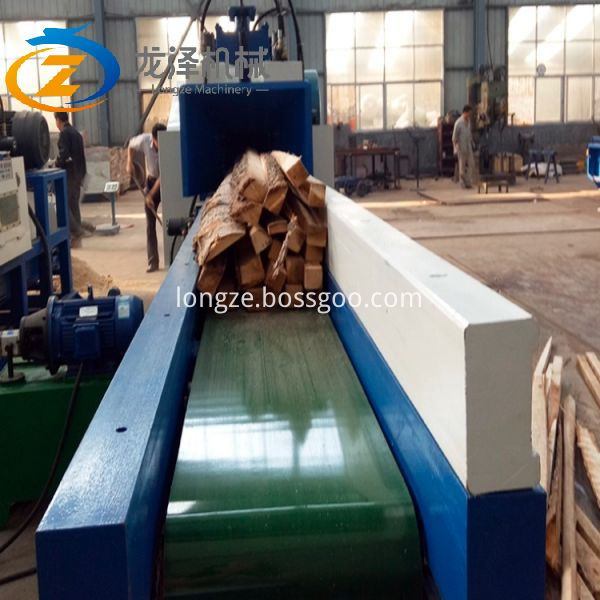

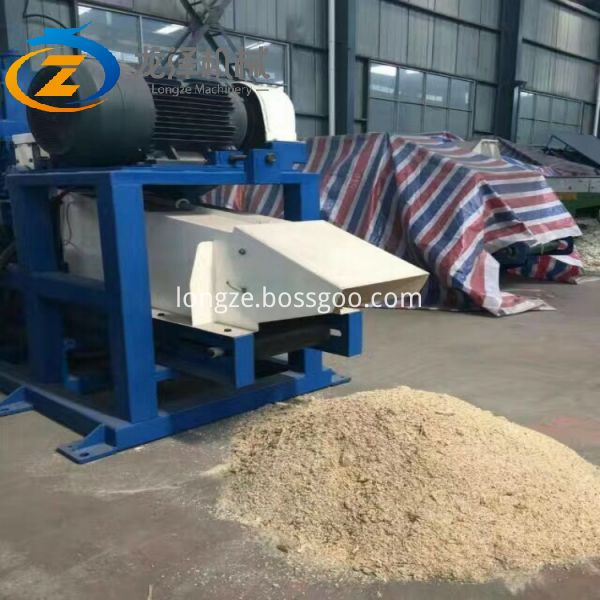

Sawdust machine is a kind of special equipment for the production of craft wood chips, widely used in the material preparation section of industrial production such as particleboard fiberboard and papermaking, as well as wood chip production plants. The small sawdust machine is also the best equipment for preparing raw materials in the factory laboratory. The cutting raw materials of the sawdust machine are mainly small-diameter wood, wood harvesting residues (twigs, branches, etc.) and wood processing residues (slabs, slats, log cores, waste veneers, etc.). It can also be used to cut non-wood materials (such as hemp stalks, reeds, bamboo, etc.).
V-belt specification
|
Model |
Checking force
|
Single belt winding
|
V-belt model, length
|
Number of V-belts
|
|
MXJ215 |
58.96 |
17.3 |
C2800 |
4 |
|
MXJ650 |
63.2 |
21.2 |
C3400 |
4 |
|
MXJ800 |
66.7 |
22.4 |
C3700 |
6 |
|
MXJ110 |
102.4 |
32.3 |
SPC-6300 |
8 |
1. The large size of the feed port of the sawdust machine is considered to accommodate a variety of raw materials, such as curved branches, side plates and bundled small strips (waste veneer), etc. Don't mistakenly think that the size of the feed port is large, you can feed large cross-section logs or full feed, which will damage the knives and machines.
2. The maximum raw material cross-section that can be cut by the sawdust machine and the diameter converted into a single log, when it is close to the maximum cut, the cutting chip should not exceed 2 meters. The moisture content of cutting raw materials is preferably about 40% relative moisture content.
3. To fasten the bedknife, a torque wrench that can accurately indicate the torque must be used.
4. The fastening bolts of the flying knife and the bottom knife must use the special high-strength bottom bolts provided by our factory. (Bolt heads are marked with "ZL"). Ordinary bolts shall not be used instead, otherwise our factory shall not be responsible for the resulting operations. The service life of high-strength bolts is 1 year, and they must be replaced after one year of use.
