Building A Wood Pellet Mill

sawdust pellet press machine is our main product which has adopted the essence of pellet mill in oversea market. Sawdust pellet press machinefor sale

Technical Parameter of Wood Pellets Machine
Model	Main Power(kw)	Capacity(t/h)	Dimension(LHW)mm	Weight(t)
XGJ560A	90+1.5+1.5+0.37+0.55	1-1.5	220013001600	4.8
XGJ560B	110+1.5+1.5+0.37+0.55	1.5-2	220013001600	5.2
XGJ560C	132+2.2+1.5+0.37+0.75	2-2.5	240014001800	5.8
XGJ850	220+3+2.2+0.55+0.55	2.5-3.5	380015002300	12
XGJ850	250+3+2.2+0.55+1.5	3-4	300018303080	13.5

This sawdust pellet press machine is mainly applicable for difficult molding materials with low adhesion rate, for example rice husk, sunflower husk, peanut shell and fruit shell; Branch, stem, bark and other wood waste; A variety of crop stalks; Rubber, cement, ash and other chemical materials.

It can be used in wood processing plants, fuel plants, fertilizer plants, chemical plants etc. Since it requires less investment and yield quicker result and that no risk, this series biomass pellet mill is an ideal dense compression molding equipment.

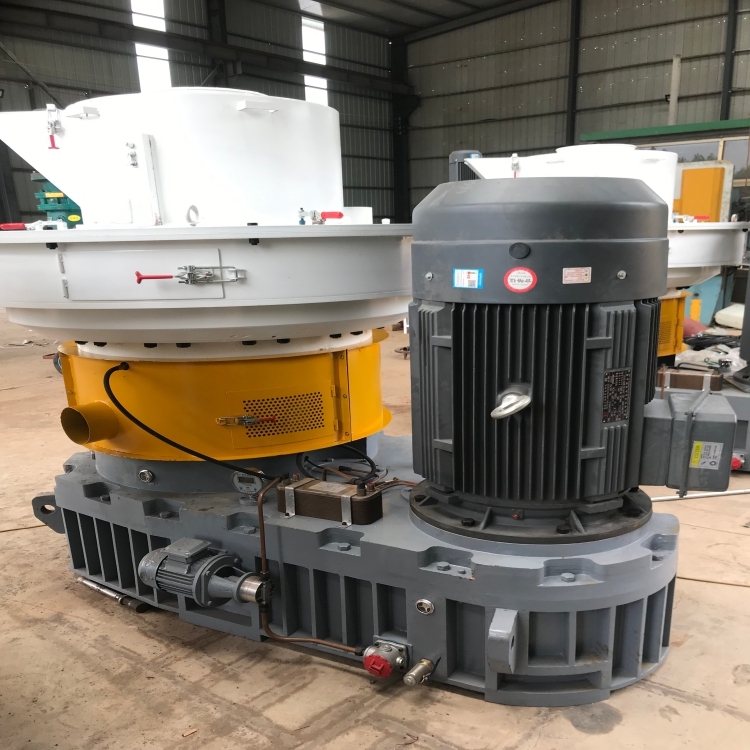

LONGZE pellet machine with wooden production

Machine advantages:
1. Vertical ring die biomass pellet mill with vertical ring die, can feeding vertically; no arching of raw material, easy for heating dissipation.
2. Vertical ring die biomass pellet mill ring die fixed, rollers rotating, materials centrifugal, evenly distributed around.
3. Vertical ring die biomass pellet mill has double-layer dies, up and down dual-use, high efficiency, saving energy. The die are made by stainless stall, which guarantee the die with long lifetime.
4. Vertical ring die biomass pellet mill with independent lubrication system lubricate the rollers and shaft, ensure the machine stable working for long time; high pressure filtration, clean the dust and unblocked.
5. Vertical ring die biomass pellet mill equip with air cooling system, keep the pelleting room with constant temperature, reduce the grease overflow or carbon agglomerate cause by pellet machine part high temperature, thus guarantee the lubrication system working normally. Meanwhile will collect the dust.
6. Vertical ring die biomass pellet mill weight is 5.3ton, can keep the machine working stable when operation.
7. Vertical ring die biomass pellet mill adopt gear drive, reduce the loss of Kinetic energy.
8. Vertical ring die biomass pellet mill can equip with changeable speed feeder, feeding uniform, assure the pelleting ratio.
9. Vertical ring die biomass pellet mill can equip with conditioner, which can adjust the moisture of raw material, assure the last pellets with good smooth.

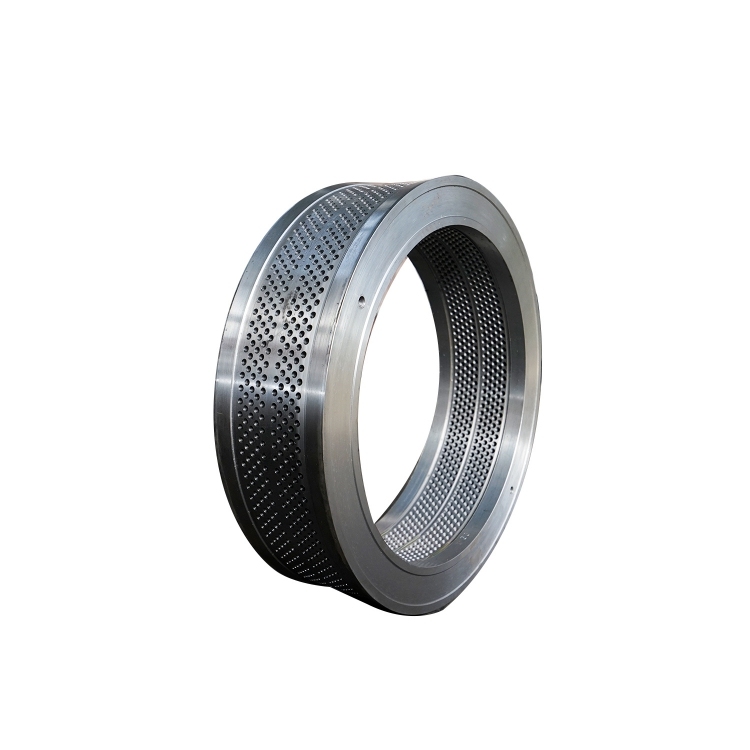

The heart parts of sawdust pellet press machine "double layer die" has unique structural assembly and "rollers" are made of high wearable alloy materials. These two parts have the following characters: Particular design, reasonable structure, low energy, high efficiency, long life and so on.
Through many technical experts' hard work, our company has developed this typical patent product which comes forth firstly in domestic market. The new machine has filled the country blank in vertical feeding for ring die pellet mill and reached the international advanced level.

sawdust pellet press machine is a new biomass fuel production machinery by processing scrap from forest and agricultural waste like eucalyptus, pine ,birch, poplar, fruit and agricultural straw, bamboo.Compared with the old machine, it absorbed the essence of horizontal ring die and flat die pellet machine ,solved the insufficient pressure ,die crack problems of horizontal ring die pellet machine, and overcame the small capacity ,high failure rate of flat die pellet machine.

It adopt the large modulus hardened surface helical gearbox , main shaft reinforcement , Power output is strong , Good stability , Low failure rate ,Low production cost, so it is the first choice machinery for biomass energy industry .

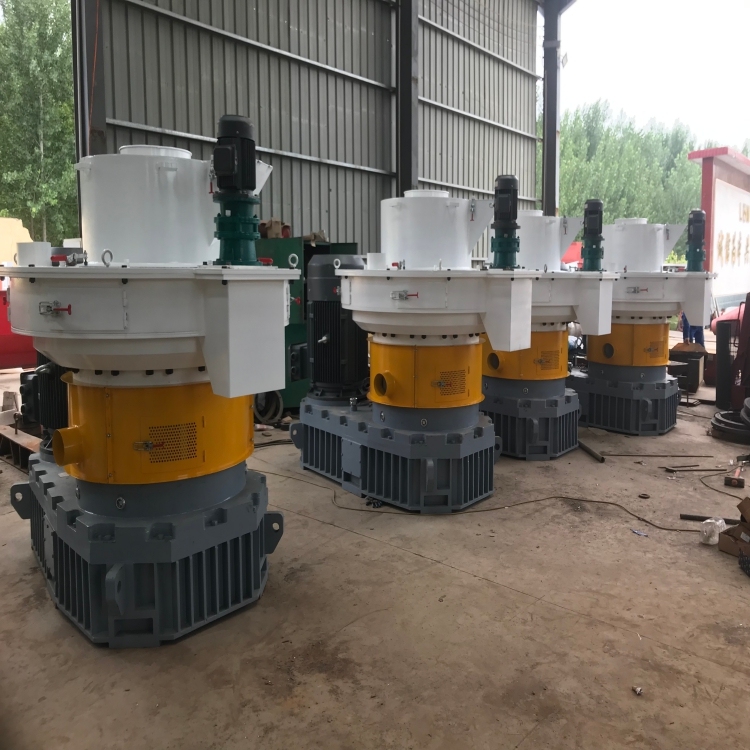

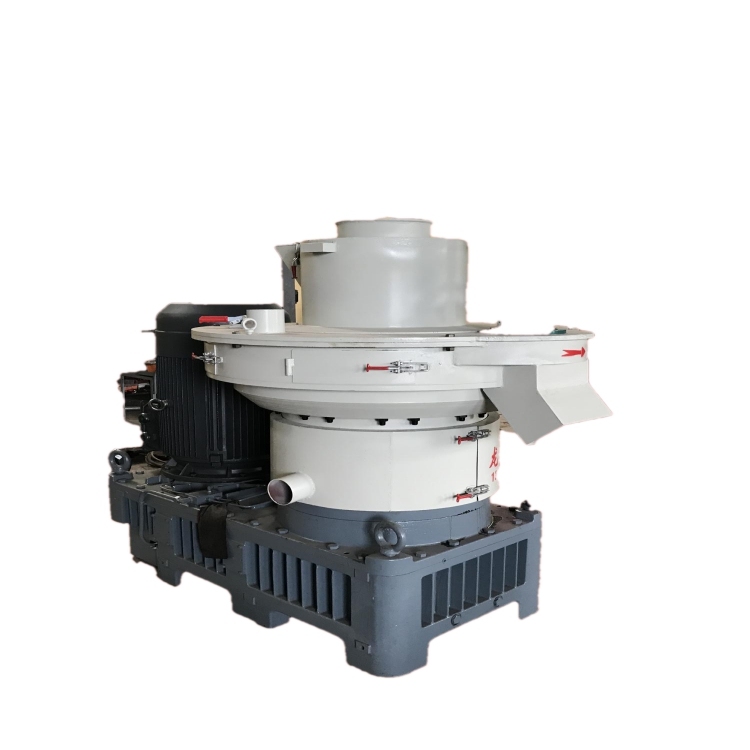

Sawdust pellet press machine

The XGJ efficient centrifugal type pellet machine, also named vertical ring die pellet mill,with high pressure, can make pellets from different pressure ratio material: wood sawdust, agricultural straw, rice husk,palm fiber, oil palm trunk, bamboo, alfalfa, grass, hay or other biomass. During pelletizing, no need any additives, DIN standard can be reached easlily.

SHANDONG LONGZE MECHANICAL EQUIPMENT CO.,LTD established in 2008 . it is a company integrated enterprise with product decelopment , design, manufacturing,training and trade . Longze has 32 patents on its ownr&d products, has passed the ISO9001.EU CE, SGS certification and so on .

Longze Main product : Crusher, Hammer mill . Dryer, Pellet Mill. Cooling , bagging. pelletilizer is patent product. Longze company provide complete service from pre-sales to after-sales. Meanwhile we can provide Engineer overseas service.
