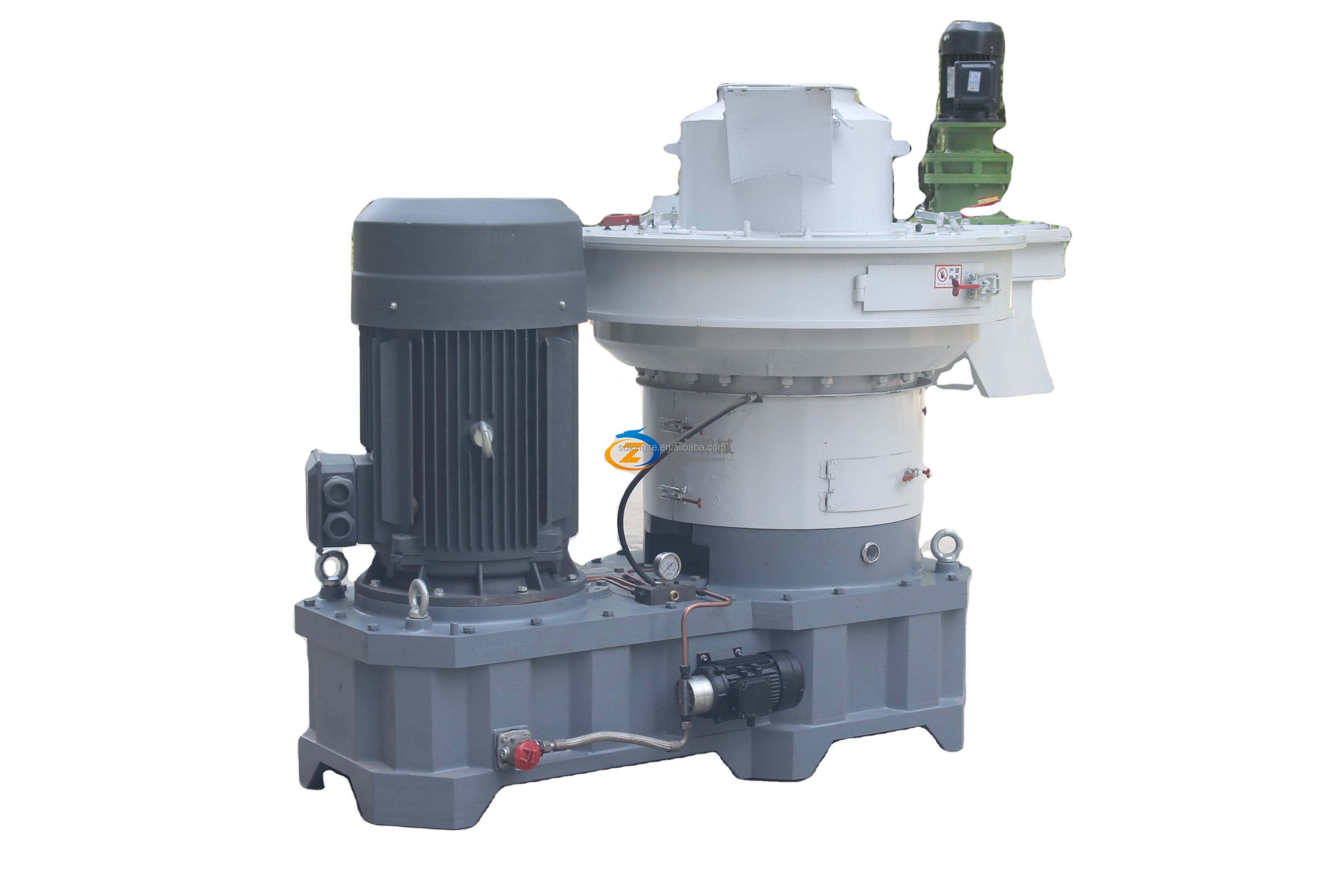

Introduction of wood pellet making machine
Compared with the old model of wood pellet machine, the new wood pellet machine whether from the appearance or pelleting effect to a higher level, especially the new wood pellet machine is equipped with the latest reducer, which will better control the speed of the pelleting machine.
Technical Parameter
|
Technical Parameter of Wood Pellets Machine
|
||||
|
Model
|
Main Power(kw)
|
Capacity(t/h)
|
Dimension(L*H*W)mm
|
Weight(t)
|
|
XGJ560A
|
90+1.5+1.5+0.37+0.55
|
1-1.5
|
2200*1300*1600
|
4.8
|
|
XGJ560B
|
110+1.5+1.5+0.37+0.55
|
1.5-2
|
2200*1300*1600
|
5.2
|
|
XGJ560C
|
132+2.2+1.5+0.37+0.75
|
2-2.5
|
2400*1400*1800
|
5.8
|
|
XGJ850
|
220+3+2.2+0.55+0.55
|
2.5-3.5
|
3800*1500*2300
|
12
|
|
XGJ850
|
250+3+2.2+0.55+1.5
|
3-4
|
3000*1830*3080
|
13.5
|
Detailed Information
Details of wood pellet making machine

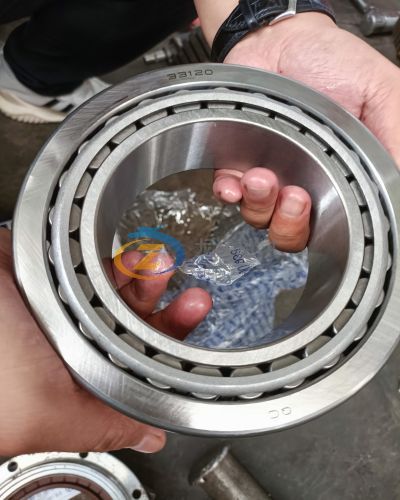

Roller Bearing
HRB Bearing/SKF Brand, can ensure the life longer.

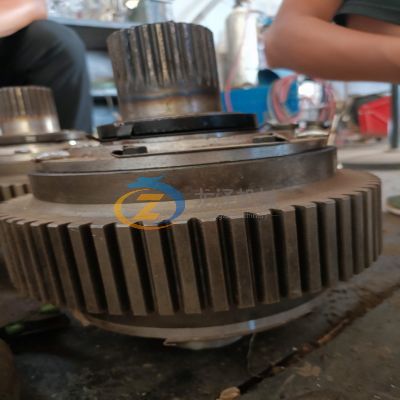

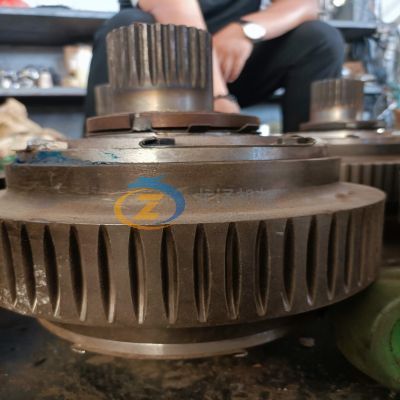

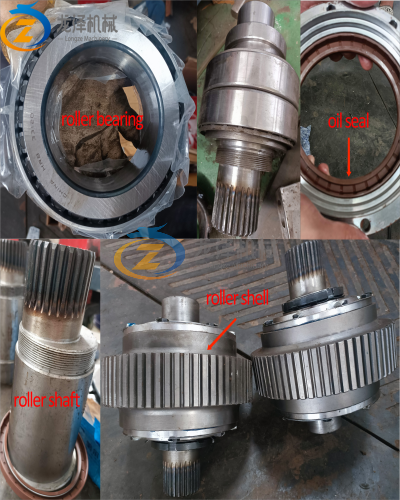

Roller assembly
Includes upper cover and down cover, roller shaft, roller bearing, seal ring. The roller cover is heat treated to work more efficiently and stably.
Straight Slot:Suitable for water into 10%-15% moisture of raw materials.
Sealing groove:Suitable for water into about 20% of raw materials.
Raw Material of wood pellet making machine
LongZe 1-2t/h wood pellet mill can press various raw materials such as: wood sawdust, bamboo, rice husk, agricultural waste, straw, wood shavings, peanut shells, grass, coffee waste, efb fiber...
Finished Pellets of wood pellet making machine
We could produce biomass pellets with diameter 6-10mm by using different size of ring die . The length of the wood pellets could be adjusted.
Company Profile
SHANDONG LONGZE MECHANICAL EQUIPMENT CO.,LTD established in 2008 . it is a company integrated enterprise with product decelopment, design,manufacturing,training and trade . Longze has 32 patents on its ownr&d products, has passed the ISO9001.EU CE, SGS certification and so on .
