Technical Parameter of Wood Pellets Machine |
||||
|
Model |
Main Power(kw) |
Capacity(t/h) |
Dimension(L*H*W)mm |
Weight(t) |
|
XGJ560A |
90+1.5+1.5+0.37+0.55 |
1-1.5 |
2200*1300*1600 |
4.8 |
|
XGJ560B |
110+1.5+1.5+0.37+0.55 |
1.5-2 |
2200*1300*1600 |
5.2 |
|
XGJ560C |
132+2.2+1.5+0.37+0.75 |
2-2.5 |
2400*1400*1800 |
5.8 |
|
XGJ850 |
220+3+2.2+0.55+0.55 |
2.5-3.5 |
3800*1500*2300 |
12 |
|
XGJ850 |
250+3+2.2+0.55+1.5 |
3-4 |
3000*1830*3080 |
13.5 |

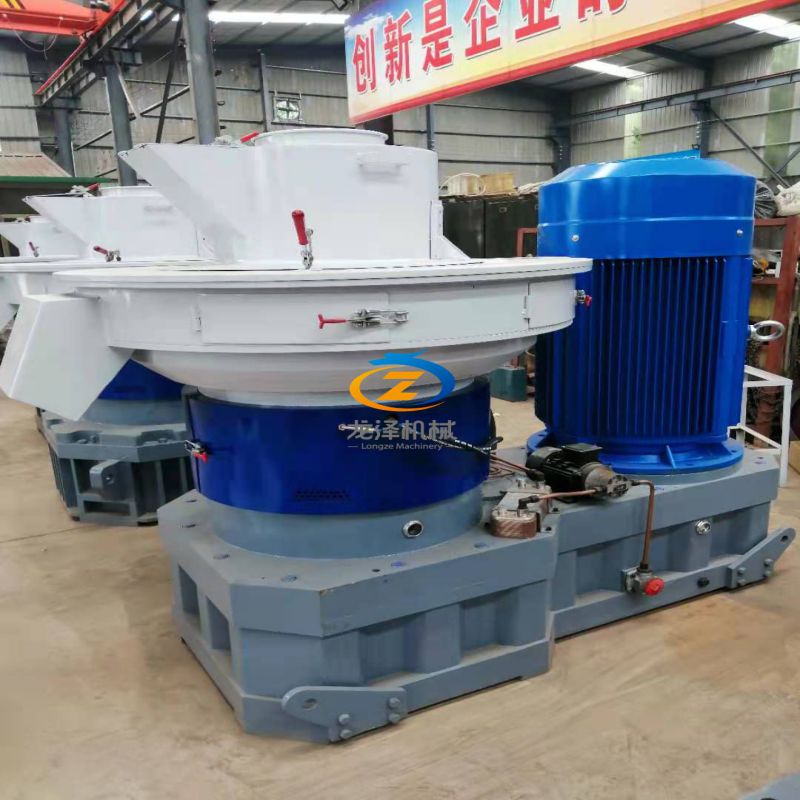

1. Vertical ring die biomass pellet mill with vertical ring die, can feeding vertically; no arching of raw material, easy for heating dissipation.

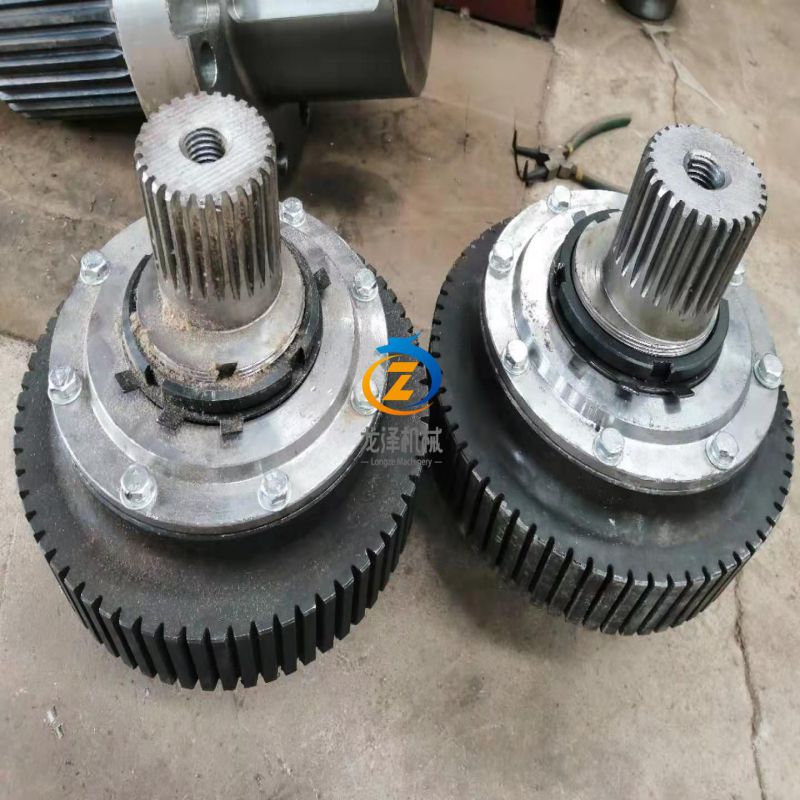

2. Vertical ring die biomass pellet mill ring die fixed, rollers rotating, materials centrifugal, evenly distributed around.

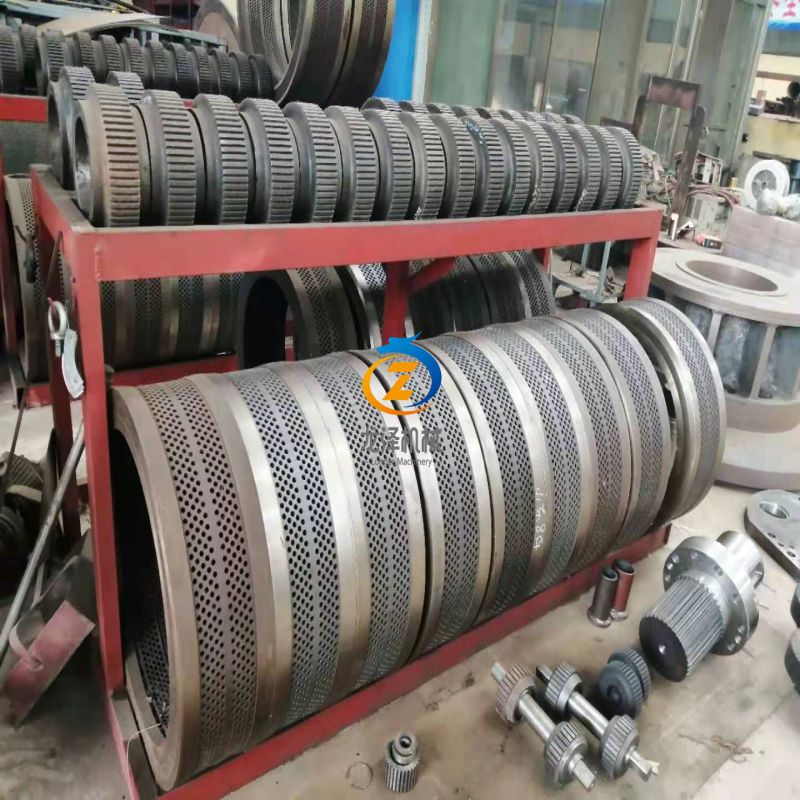

3. Vertical ring die biomass pellet mill has double-layer dies, up and down dual-use, high efficiency, saving energy. The die are made by stainless stall, which guarantee the die with long lifetime.
4. Vertical ring die biomass pellet mill with independent lubrication system lubricate the rollers and shaft, ensure the machine stable working for long time; high pressure filtration, clean the dust and unblocked.
5. Vertical ring die biomass pellet mill equip with air cooling system, keep the pelleting room with constant temperature, reduce the grease overflow or carbon agglomerate cause by pellet machine part high temperature, thus guarantee the lubrication system working normally. Meanwhile will collect the dust.
6. Vertical ring die biomass pellet mill weight is 5.3ton, can keep the machine working stable when operation.
7. Vertical ring die biomass pellet mill adopt gear drive, reduce the loss of Kinetic energy.
8. Vertical ring die biomass pellet mill can equip with changeable speed feeder, feeding uniform, assure the pelleting ratio.
9. Vertical ring die biomass pellet mill can equip with conditioner, which can adjust the moisture of raw material, assure the last pellets with good smooth.
