high yield wood sawdust board making machine

2023 04/11

Description:

Small biomass wood pellet machines
1. Both ends of the press roller are consistent with the line speed of the inner and outer ring of the grinding disc. There is no dislocation friction between the wheel and the die, which reduces the resistance, reduces the loss of kinetic energy and prolongs the service life of the die.

2. The press roller is set evenly, and the operation is stable.

3. Adopt the central pressure regulating structure, adapt to different materials, ensure the pressing effect. Wood chips, corn stalks and other compression molding needs a lot of pressure, in the same granulating equipment, the roller parts are the central part of the whole equipment, and the use of high quality alloy steel, improve the service life of the roller.

4. The structure of the template stationary,spindle driven pressure wheel to suppress materials, suitable for suppressing straw particles.

Features of the straw wood pellet mill :

Advantage 1: After the pressure roller is enlarged, the bearing is enlarged and the pressure bearing capacity is enhanced.
Advantage 2: After the pressure roller is enlarged, the temperature generated by the extrusion friction is not easily transmitted to the bearing chamber, ensuring that the lubricating grease does not easily overflow when the bearing is working at a low temperature.
Advantage 3: After the pressure roller is enlarged, the pressure roller can be repaired 2-3 times, the service life is prolonged,the production cost is reduced, and the profit margin of the project is increased.

Size Information

Model	Power(kw/hp)	Feed capacity(kg/h)	Fibe capacity(kg/h)	Fertilizer capacity(kg/h)
SKJ2-200	11kw/22hp	300-500	50-100	300-500
SKJ2-250	15kw/22hp	400-700	100-300	400-700
SKJ2-300	22kw/32hp	500-800	200-400	500-800
SKJ2-350	30/22kw/45hp	600-1000	300-500	500-800
SKJ2-450	45+0.55+0.37	800-1200	600-800	800-1000
SKJ2-550	55+0.55+0.37	1000-1500	800-1200	1000-1200

Small biomass wood pellet machines

1. Both ends of the press roller are consistent with the line speed of the inner and outer ring of the grinding disc. There is no dislocation friction between the wheel and the die, which reduces the resistance, reduces the loss of kinetic energy and prolongs the service life of the die.

2. The press roller is set evenly, and the operation is stable.

4. The structure of the template stationary,spindle driven pressure wheel to suppress materials, suitable for suppressing straw particles.

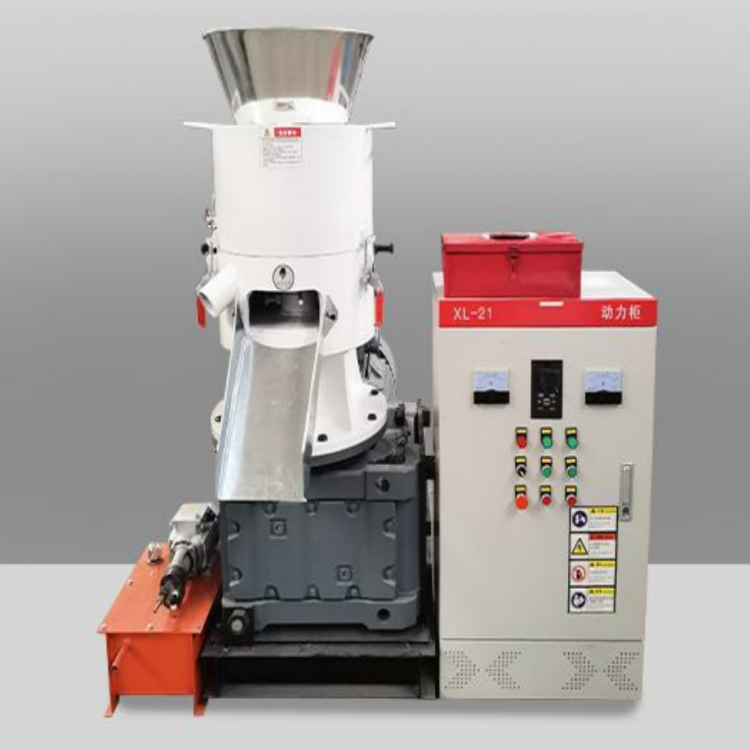

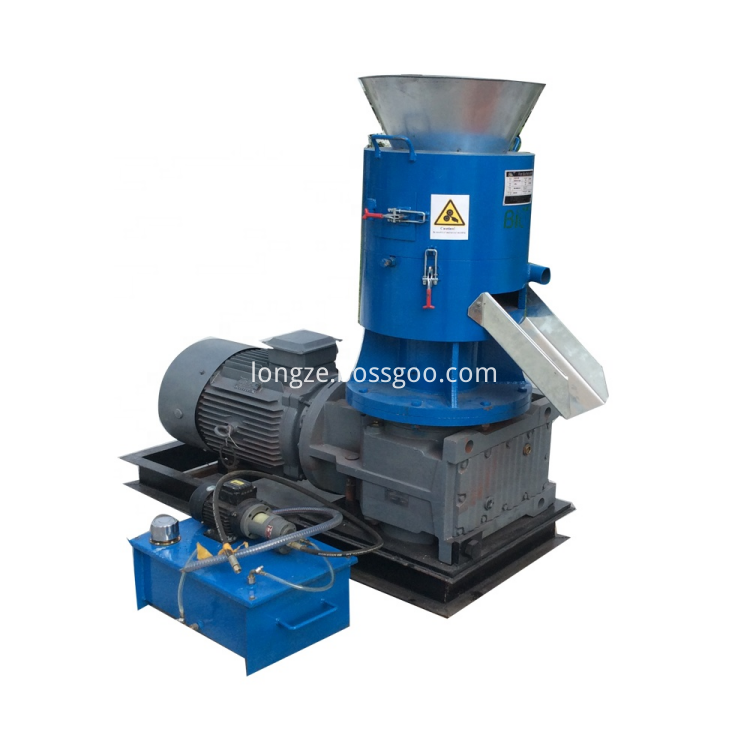

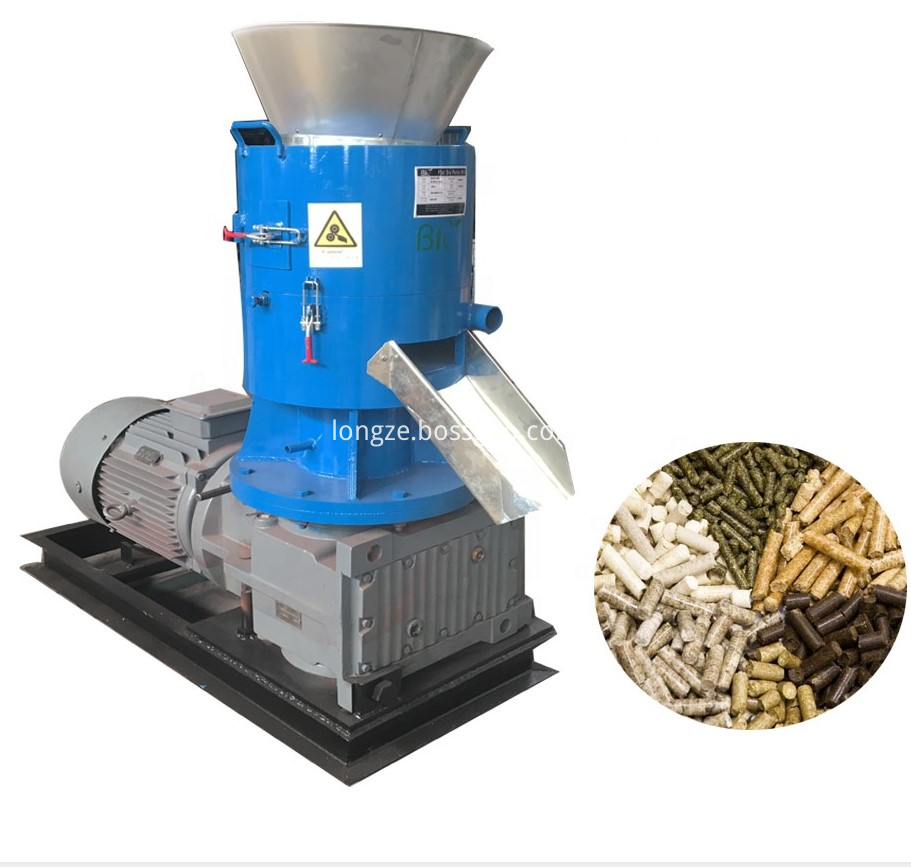

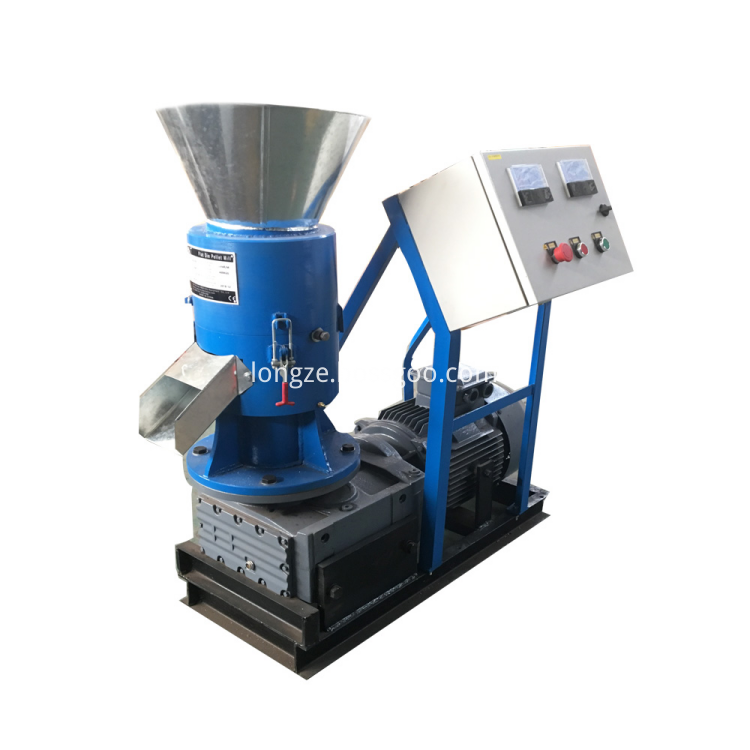

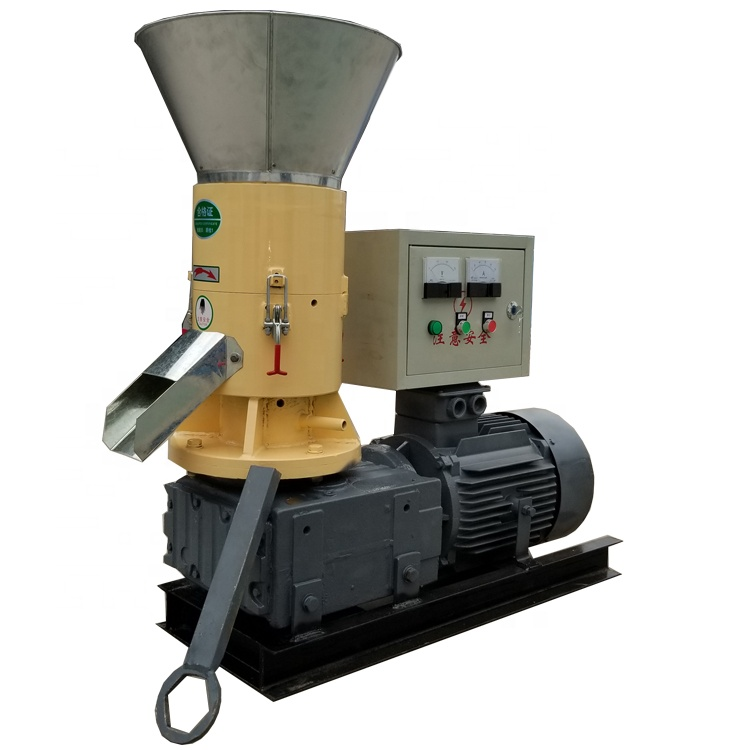

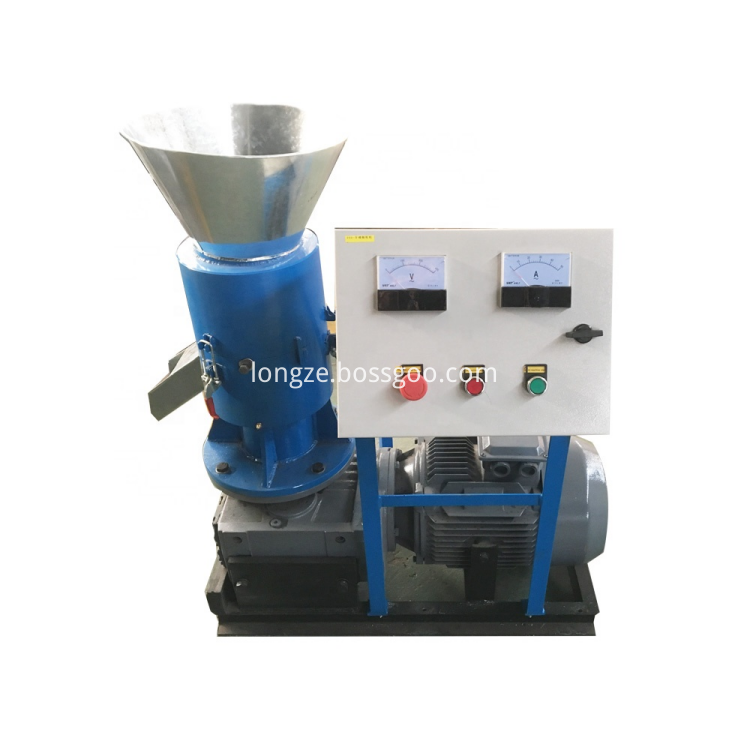

Machine Photos
